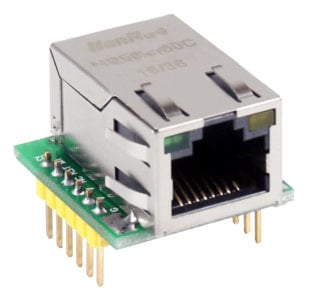

W5500 mini WIZ820io

W5500 mini WIZ820io

Quick Spec

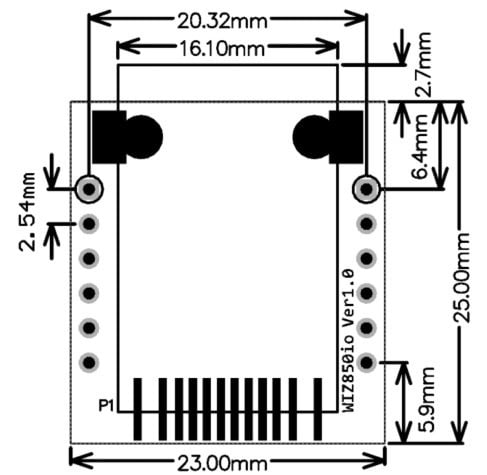

• Plugin Network Module - Size 23 x 25mm
• Hardware compatible with WIZ820io.
• Usable without H/W design for W5500, Transformer & RJ45.
• Fast evaluation for W5500 & MCU in the target board.
• Support high speed SPI interface - 80MHz
• Support power down mode and Wake-on-LAN function
• Header Spacing 2.54mm
• The built-in hardware TCPIP protocol stack
• Supports up to 8 Socket connection
• Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
• Integrated data link layer, physical layer
• Support the power off wakeup
• Support high speed serial peripheral interface (0~3 SPI model)
• Internal 32K bytes receive buffer
• The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
• Support auto negotiation (10/100-Based full duplex / half duplex)
